WALLS & CEILING CONSTRUCTION
OT Laminar View
HERMETICALLY SEALED DOORS)
Modular OT
OPERATIONTHEATRE CONTROL PANEL
DISTRIBUTION BOARD
X RAY VIEWING SCREENS
PRESSURE RELIEF DAMPER
STORAGE UNIT
HATCH BOX
CONDUCTIVE VINYL FLOORING OT
SCRUB STATION
WALLS & CEILING CONSTRUCTION
Wall and ceiling of Modular OT is Made with panel like SS-304/EGP backed with Gypsum board or PUF sandwiched SS- 304/EGP or PPGI panel. Joints of SS-304/EGP panel backed by Gypsum shall be filled with epoxy sealant. Joints of panels shall be sealed with Silicon gasket for SS Panel/PUF panel Metallic wall panel, the return air ducts at the four corners should be covered with The inside wall and ceiling surface of the False ceiling shall be plastered and coated with Antibacterial paint/Epoxy/PU paints before finalization of OT Corners inside OT should have coving in SS OT.
(*As per customer need customization is done)
WALLS & CEILING CONSTRUCTION
Wall and ceiling of Modular OT is Made with panel like SS-304/EGP backed with Gypsum board or PUF sandwiched SS- 304/EGP or PPGI panel. Joints of SS-304/EGP panel backed by Gypsum shall be filled with epoxy sealant. Joints of panels shall be sealed with Silicon gasket for SS Panel/PUF panel Metallic wall panel, the return air ducts at the four corners should be covered with The inside wall and ceiling surface of the False ceiling shall be plastered and coated with Antibacterial paint/Epoxy/PU paints before finalization of OT Corners inside OT should have coving in SS OT.
(*As per customer need customization is done)

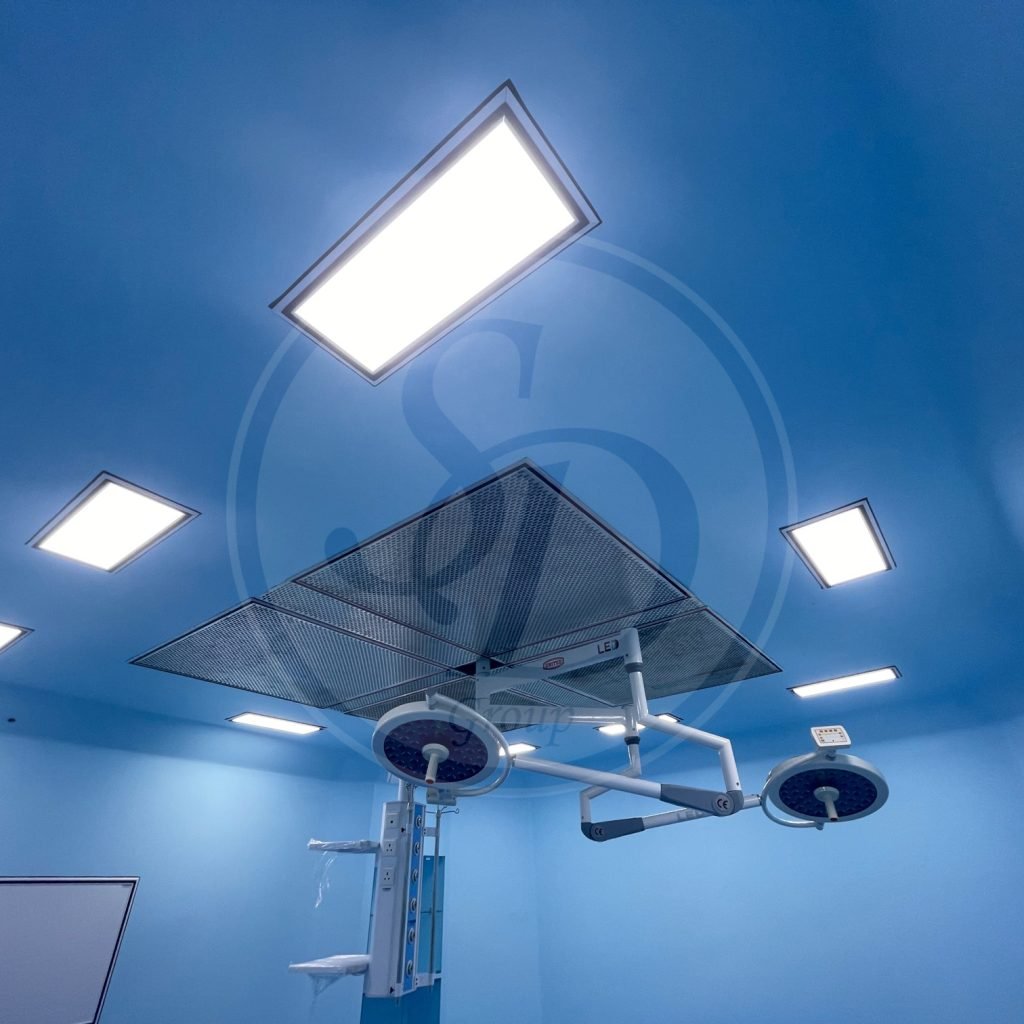

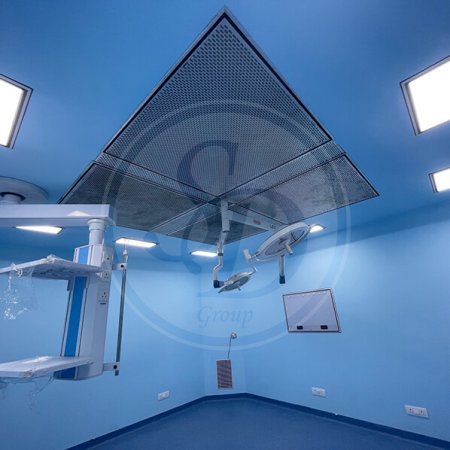

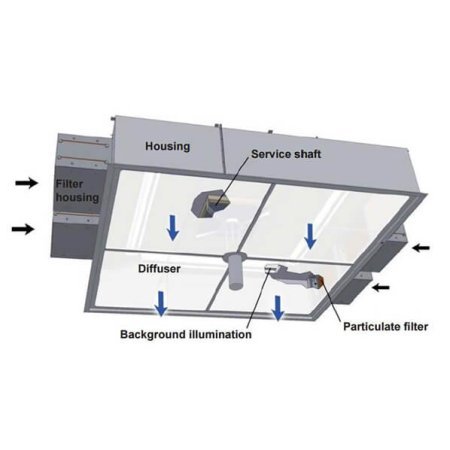

LAMINAR AIR FLOW SYSTEM
The laminar flow system consists of a thick extruded aluminum frame with a factory-prepared fine sealing system and appropriate test certificates. The plenum, sealed for silt duty, is supplied in factory packaging. The plenum corners are made of extruded aluminum sections that support fire retardant FRP housings, ensuring that air passes only through the deep pleat HEPA filter. The system includes a stainless steel perforated diffuser grill and is designed to provide a cleanliness level of class 100 (<=100 particles/ft3) and bacteriological class B (<=20cfu/m3).
LAMINAR AIR FLOW SYSTEM
The laminar flow system consists of a thick extruded aluminum frame with a factory-prepared fine sealing system and appropriate test certificates. The plenum, sealed for silt duty, is supplied in factory packaging. The plenum corners are made of extruded aluminum sections that support fire retardant FRP housings, ensuring that air passes only through the deep pleat HEPA filter. The system includes a stainless steel perforated diffuser grill and is designed to provide a cleanliness level of class 100 (<=100 particles/ft3) and bacteriological class B (<=20cfu/m3).

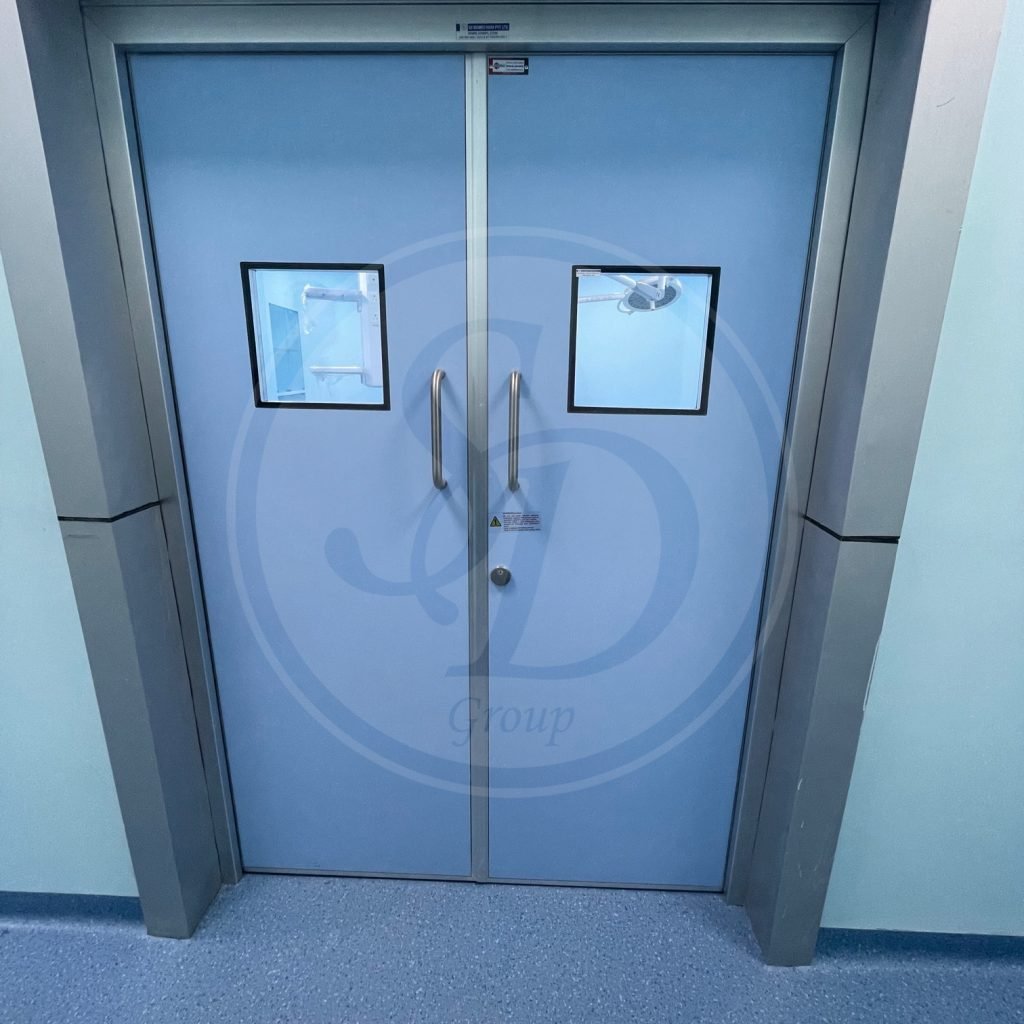

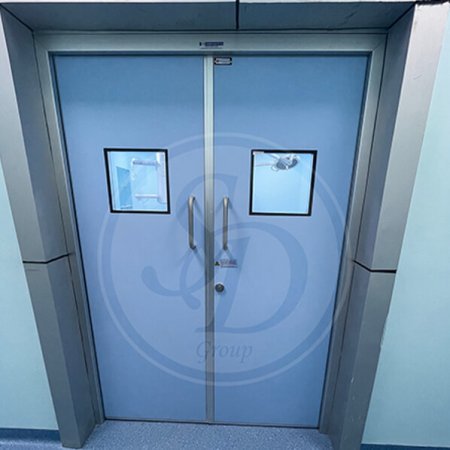

DOOR & FRAMES
The door frame made of high quality anodize aluminum and the door panel made of compact laminate that can withstand high abrasion. To ensure efficient sealing of the doors frames provided. They will consist of reinforced plasterboard panels faced with the same laminate as the doors. The door seal on all four edges in the closed position & surface installed type. The track of the door constructed with high quality door lock with aluminum extrusion, fixed
firmly to the walls. Nylon runner guides fixed to the door in such a way they do not obstruct trolley movement through the door.
DOOR & FRAMES
The door frame made of high quality anodize aluminum and the door panel made of compact laminate that can withstand high abrasion. To ensure efficient sealing of the doors frames provided. They will consist of reinforced plasterboard panels faced with the same laminate as the doors. The door seal on all four edges in the closed position & surface installed type. The track of the door constructed with high quality door lock with aluminum extrusion, fixed
firmly to the walls. Nylon runner guides fixed to the door in such a way they do not obstruct trolley movement through the door.

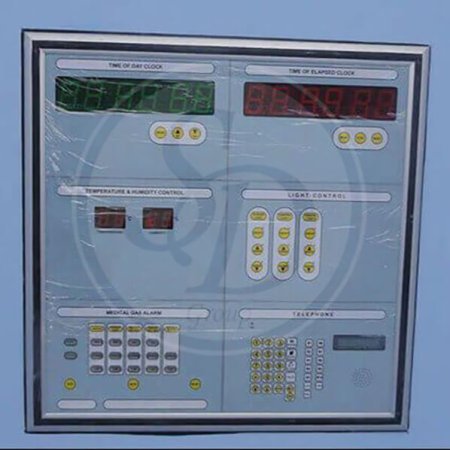

OPERATION THEATER CONTROL PANEL
The surgeon control panel should meet Electrical safety codes for high & low voltage system, wired to the current IEE regulations. The room Surgeon’s control panel modifiable with changing technology & equipment in operating environments. Control Panel will be user friendly & ease of operating & maintaining purpose. The panel “Membrane” type; configured to incorporate all the services that operation room staff required. The fascia made with superior quality UV resistance membrane with sterilization feature
OPERATION THEATER CONTROL PANEL
The surgeon control panel should meet Electrical safety codes for high & low voltage system, wired to the current IEE regulations. The room Surgeon’s control panel modifiable with changing technology & equipment in operating environments. Control Panel will be user friendly & ease of operating & maintaining purpose. The panel “Membrane” type; configured to incorporate all the services that operation room staff required. The fascia made with superior quality UV resistance membrane with sterilization feature

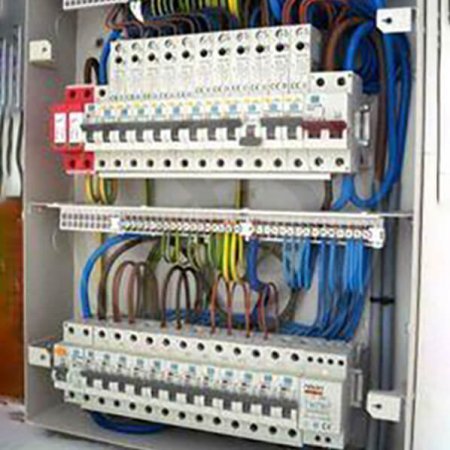

DISTRIBUTION BOARD
All high voltage equipment installed in a separate enclosure. The remote cabinet should house the operating lamp transformers, mains failure relays, electrical distribution equipment & circuit protection equipment for all circuits within the operating theatre. All internal wiring should terminate in connectors with screw & clamp spring connections of the clip- on type mounted, on a DIN rail & labeled with clear proprietary labels. Individual fees or miniature circuit breakers should protect all internal circuits.
DISTRIBUTION BOARD
All high voltage equipment installed in a separate enclosure. The remote cabinet should house the operating lamp transformers, mains failure relays, electrical distribution equipment & circuit protection equipment for all circuits within the operating theatre. All internal wiring should terminate in connectors with screw & clamp spring connections of the clip- on type mounted, on a DIN rail & labeled with clear proprietary labels. Individual fees or miniature circuit breakers should protect all internal circuits.
X RAY VIEWING SCREENS
The system should have electrical safety codes for high & low voltage system. The theatre equipped with a 2 plate X-ray viewing screen. It designed to provide flicker free luminance for the film viewing purpose. It installed flushed with theatre wall for hygienic and ease of cleaning purpose .The X-Ray viewing screen designed for the purpose of front access. The X-Ray viewing screen illuminated by 4 pieces of high frequency fluorescent lamps and the dimming is controlled by the usage of dimming ballast with the PCB that is mounted inside the box. The diffuser able to diffuse the light evenly and to provide enough luminance for film viewing. It made of high quality opaque acrylic sheet.
X RAY VIEWING SCREENS
The system should have electrical safety codes for high & low voltage system. The theatre equipped with a 2 plate X-ray viewing screen. It designed to provide flicker free luminance for the film viewing purpose. It installed flushed with theatre wall for hygienic and ease of cleaning purpose .The X-Ray viewing screen designed for the purpose of front access. The X-Ray viewing screen illuminated by 4 pieces of high frequency fluorescent lamps and the dimming is controlled by the usage of dimming ballast with the PCB that is mounted inside the box. The diffuser able to diffuse the light evenly and to provide enough luminance for film viewing. It made of high quality opaque acrylic sheet.

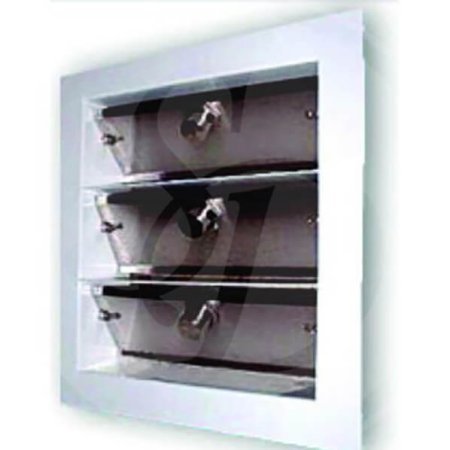

PRESSURE RELIEF DAMPER
Pressure relief dampers provided in each room to prevent contamination of air from clean and dirty areas. Suitably sized air pressure relief damper strategically placed, enabling differential room pressure to be maintained and ensure that when doors are opened between clean and dirty areas. Counter- weight balancing system provided in the PRD to maintain positive pressure inside the operation room. Air pressure stabilizers should have a capability of controlling differential pressure to close tolerance. The PRD should remain closed at pressure below the set pressure and should open fully at pressure and should open fully at pressure only fractionally above the threshold pressure.
PRESSURE RELIEF DAMPER
Pressure relief dampers provided in each room to prevent contamination of air from clean and dirty areas. Suitably sized air pressure relief damper strategically placed, enabling differential room pressure to be maintained and ensure that when doors are opened between clean and dirty areas. Counter- weight balancing system provided in the PRD to maintain positive pressure inside the operation room. Air pressure stabilizers should have a capability of controlling differential pressure to close tolerance. The PRD should remain closed at pressure below the set pressure and should open fully at pressure and should open fully at pressure only fractionally above the threshold pressure.

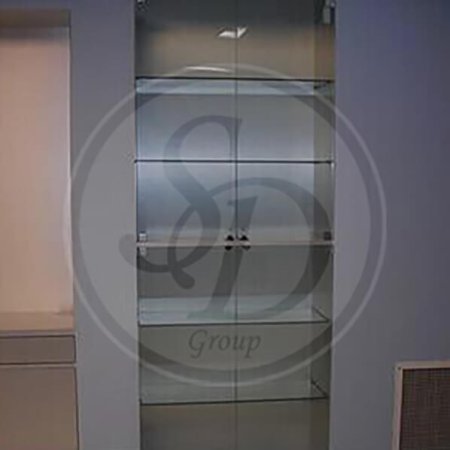

STORAGE UNIT
The storage unit made with 1.50 mm thick EGP Zinc coated steel panels. The storage unit divided 2 equal parts and each part should have individual glass doors with high quality locking system. Each part will be provided with glass racks.
STORAGE UNIT
The storage unit made with 1.50 mm thick EGP Zinc coated steel panels. The storage unit divided 2 equal parts and each part should have individual glass doors with high quality locking system. Each part will be provided with glass racks.
HATCH BOX
Hatch provided in each operation theater to remove waste materials from the operation theater to Dirty linen area just adjacent to Operation Theater. Each Hatch should be equipped with two doors and the door operated electronically. The Hatch designed in such a way that only one door opened at one time ,The UV light should be so installed that it is kept on while both the doors are closed. This UV light has to be automatically turned off in case of opening of either of the doors. There shall be indicators on both side of the OT so that door open / close status can
be monitored from both ends.
HATCH BOX
Hatch provided in each operation theater to remove waste materials from the operation theater to Dirty linen area just adjacent to Operation Theater. Each Hatch should be equipped with two doors and the door operated electronically. The Hatch designed in such a way that only one door opened at one time ,The UV light should be so installed that it is kept on while both the doors are closed. This UV light has to be automatically turned off in case of opening of either of the doors. There shall be indicators on both side of the OT so that door open / close status can
be monitored from both ends.

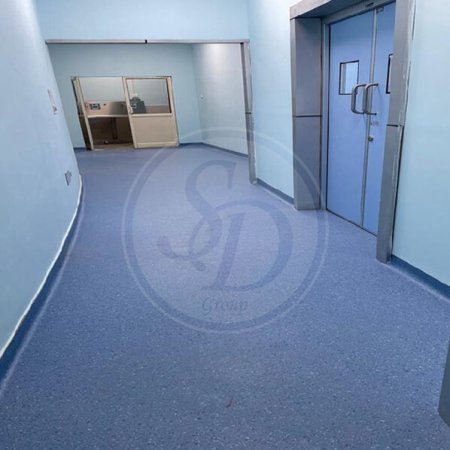

CONDUCTIVE FLOORING
Flooring seamless with perfectly curved flash-covings, resistance to mechanical stress and dynamic loads and having ECD/EMI (Conductive) protection characteristics, 2mm thick, washable vinyl. (“Make Gerflor/ Tarkett/jeofloor and equivalent)
CONDUCTIVE FLOORING
Flooring seamless with perfectly curved flash-covings, resistance to mechanical stress and dynamic loads and having ECD/EMI (Conductive) protection characteristics, 2mm thick, washable vinyl. (“Make Gerflor/ Tarkett/jeofloor and equivalent)

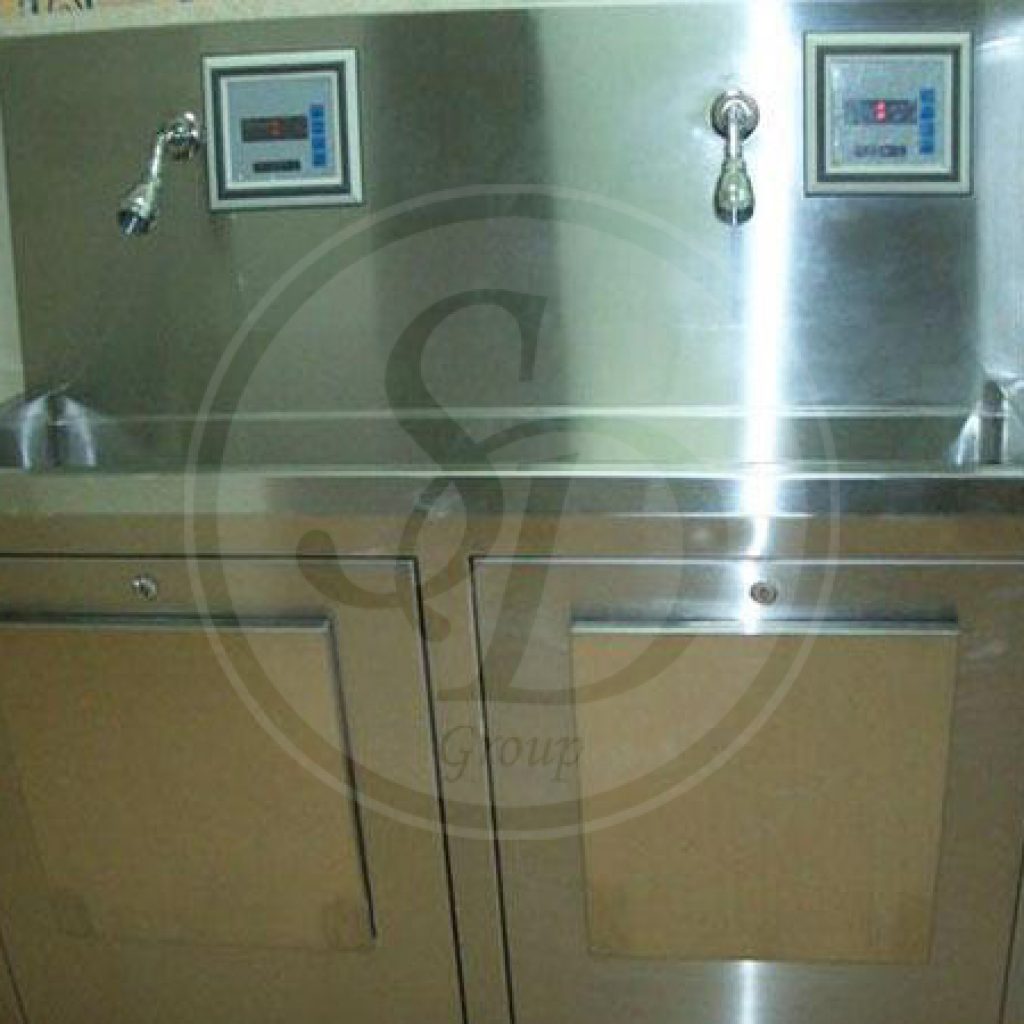

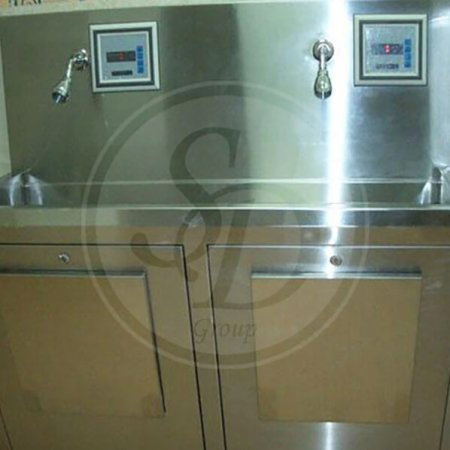

SCRUB STATION
Compact surgical scrub sink designed for use in OT complex providing Surgeons with a convenient sink for pre – OT scrub up. Each fixture fabricated from heavy gauge type 304 stainless steel and seamless welded construction, polished to a stain finish. The scrub sink provided with a front access panel which easily removed for access to the water controlled value, waste connections, stoppers and strainers Hands free operation should include infra red sensors
with built-in range of adjustment. Thermostatic mixing, valve control located behind the access panel and maintain constant water temperature
SCRUB STATION
Compact surgical scrub sink designed for use in OT complex providing Surgeons with a convenient sink for pre – OT scrub up. Each fixture fabricated from heavy gauge type 304 stainless steel and seamless welded construction, polished to a stain finish. The scrub sink provided with a front access panel which easily removed for access to the water controlled value, waste connections, stoppers and strainers Hands free operation should include infra red sensors
with built-in range of adjustment. Thermostatic mixing, valve control located behind the access panel and maintain constant water temperature
